Pin-stripe Pre-cut Overlay Kit for 2024+ Elantra N-line

$150.00
$150.00
Hurry up! only 0 left
Color: Gloss Black

Free Shipping

Free standard shipping on orders over $25 USA Domestic

Free shipping on orders over $100 for international

Free Returns

Learn More.
Pin-stripe Pre-cut Overlay Kit for 2024+ Elantra N-line

Pin-stripe Pre-cut Overlay Kit for 2024+ Elantra N-line

$150.00

Pin-stripe Pre-cut Overlay Kit for 2024+ Elantra N-line

$150.00
Color: Gloss Black

Transform your 2024+ Elantra N-line with this snazzy Pin-stripe Pre-cut Overlay Kit. Say goodbye to dull silver accents around the car and add a pop of color with ease. Plus, the bolder finish gives your ride a polished, factory-inspired vibe. Make your ride shine with a touch of color! This Pin-stripe Pre-cut Overlay Kit easily adds a unique look and finish to your 2024+ Elantra N-line. Say hello to a polished, factory-inspired vibe without any hassle.

  • Fitment: Elantra N 2022-2023
  • In package:
    • Multiple Pin-stripe Pcs (3 x Front Lip, 3 x Diffuser )
    • 1 x 30 degree blade
    • 1 x Felt Tip Squeegee
  • High-Quality durable material. 5-year durability
  • Professional Installation is recommended, but not required.

How to Install

For Best Results

Tools: Heat Gun or Blow Dyer / Padded Glove or Felt Tip Squeegee

  1. Rinse / Soap the entire pin-stripes areas.
  2. If using your fingers, start from one corner and continue laying as you move toward the other end.
  3. Start from the grooved cut-out edges and align the pin-stripe to the grooved edges that you see on the diffuser pin and front lip pin.
  4. Starting from the front lip:
    1. 1st section is the section that has the "kick up" on the lip on the side of the bumper.
      1. You can either start where the kick up is or at the front crevice where the 3 part lip starts (front bumper just below the inner part of the headlight)
      2. Tack the vinyl down on an edge and use your free hand to guide the rest of the vinyl.
      3. If laying from wheel well (kick up) to the front of car - ensure the top portion of the pinstripe is laid first then lay the flat portion down and adjust the pin to flow with the lines of the vehicle.
      4. Lift up if needed to smooth out wrinkles (add a tiny bit of heat) for the wrinkles to disappear, WAIT for it to cool then reapply.
      5. Repeat steps for the other side of the front lip.
    2. 2nd section is the middle part of the front lip, it is a straight line so lay from one of the crevice to the other.
      1. NOTE* - THE MIDDLE OF THE FRONT LIP - has a rectangular spot that will not be covered.
      2. lay everything down from crevice to crevice, use a heat gun and heat the section that goes over the middle rectangle to bend the overlay around its shape.
      3. Next, add the rectangle overlay onto the rectangle, use a heat gun or blow dryer to form the vinyl onto the rectangle and push in the excess into the black plastic to hide the excess vinyl.
  5. Starting from diffuser:
    1. There are 3 sections of the diffuser for ease of wrapping.
    2. Lay down the kick up portion first - the same way you did for the front lip.
    3. It bends more upward so make sure you guide the overlay with your free hand prior to laying everything down.
    4. You may also do it in a reverse way, so the strip down from the crevice all the way to the kickup.
    5. Once both sides of the diffuser is laid, peel the middle pin-stripe and lay that portion with ease, adjust if needed.
  6. If you have a blow dryer or heat gun, use it to get rid of any tiny bubbles and improve adhesion. This also allows the wrap to be malleable so it wraps around the curved edges on the pin-stripe.
  7. Make sure once all edges are wrapped, use the blade to lightly cut through the wrap to where all the edges of the red end.
  8. If there are bubbles make sure you press firmly with your finger and swipe it toward the closest edge
  9. If you mess up, you can peel it off right away with no hassle, and add some heat to get rid of the wrinkles.
  10. After fully laying the overlay, heat up the overlay to insure adhesion onto the pin-stripes.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
James C.
Awesome Product!

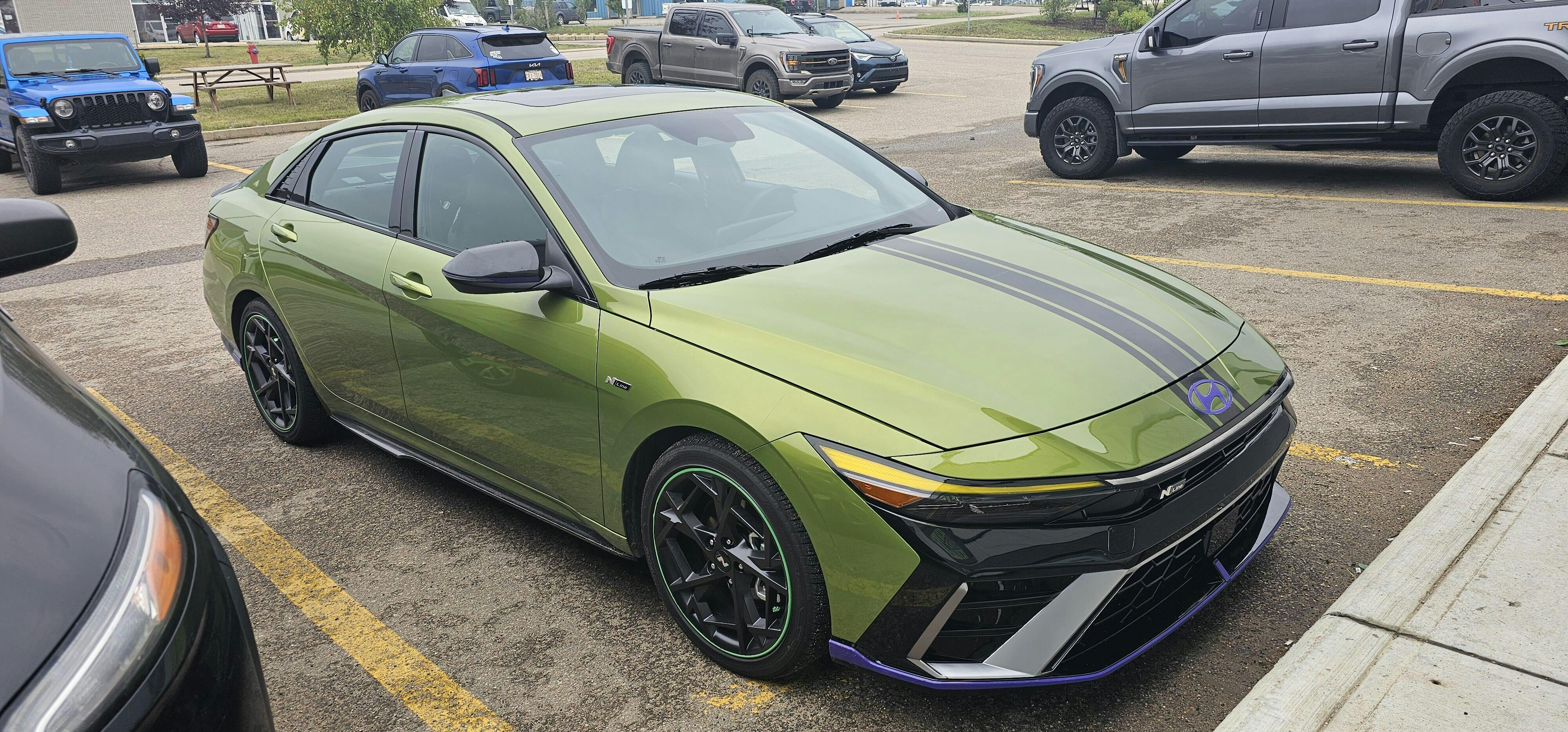

Got this for my 2024 Elantra N Line in Exotic Green. Going for a "Joker" theme so the purple was perfect. Excellent product and super easy to apply.
Great customer service too!
Also got the mirror pinstripes and emblem overlays go match. Great stuff! Getting lots of compliments.
